Product Details

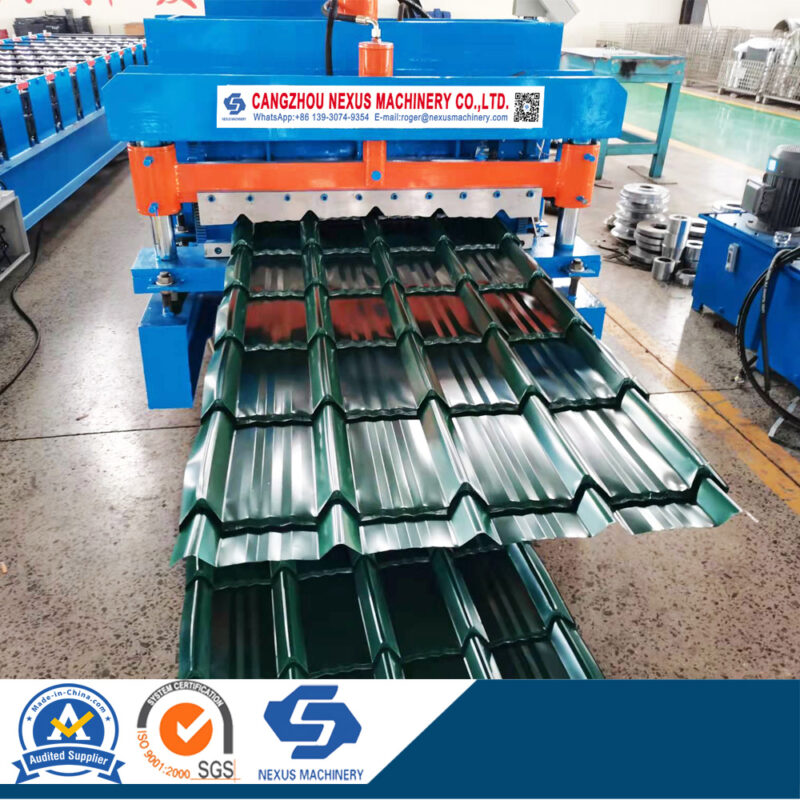

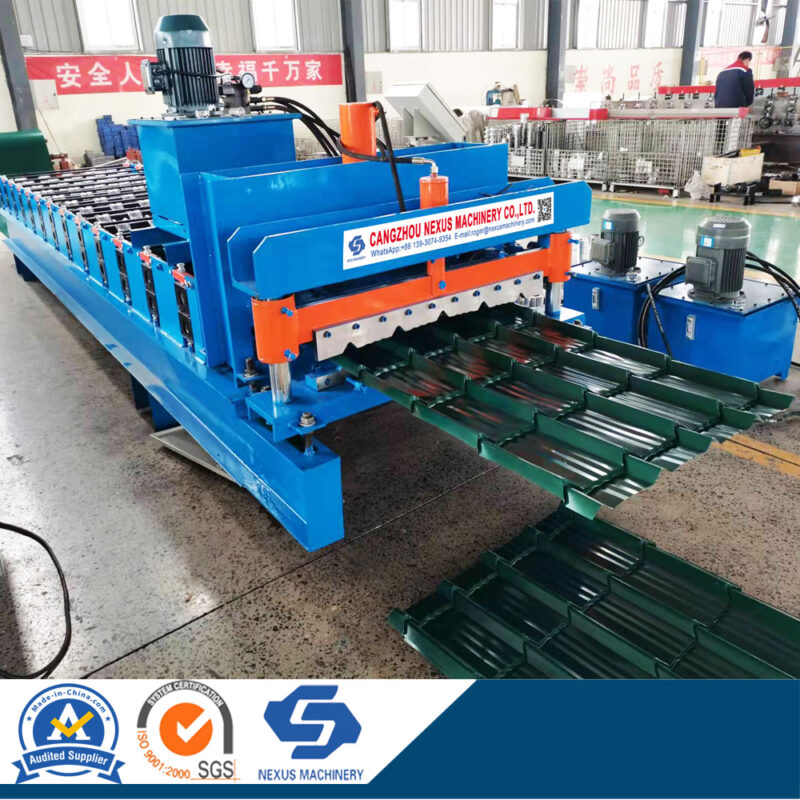

Qtile Sheet Roll Forming Machine is designed to suit coil width 914mm, the main material is pre-painted galvanized steel and galvanized steel.
Thickness range from 0.20-0.70mm. Work speed can reach 5m/min.
Main Parameter:
| Forming steps | 13 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 5m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
