Product Details

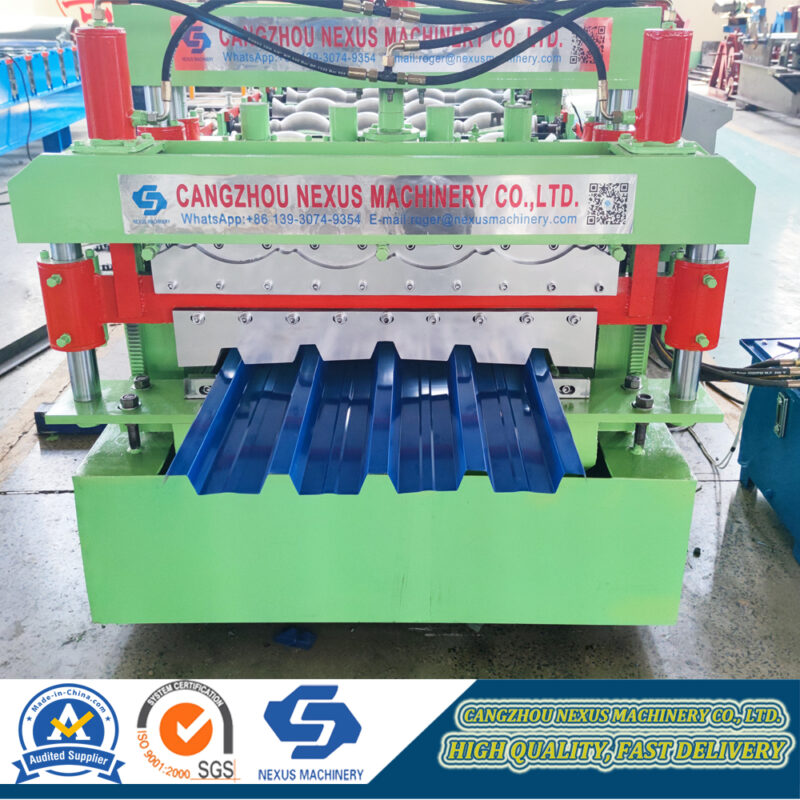

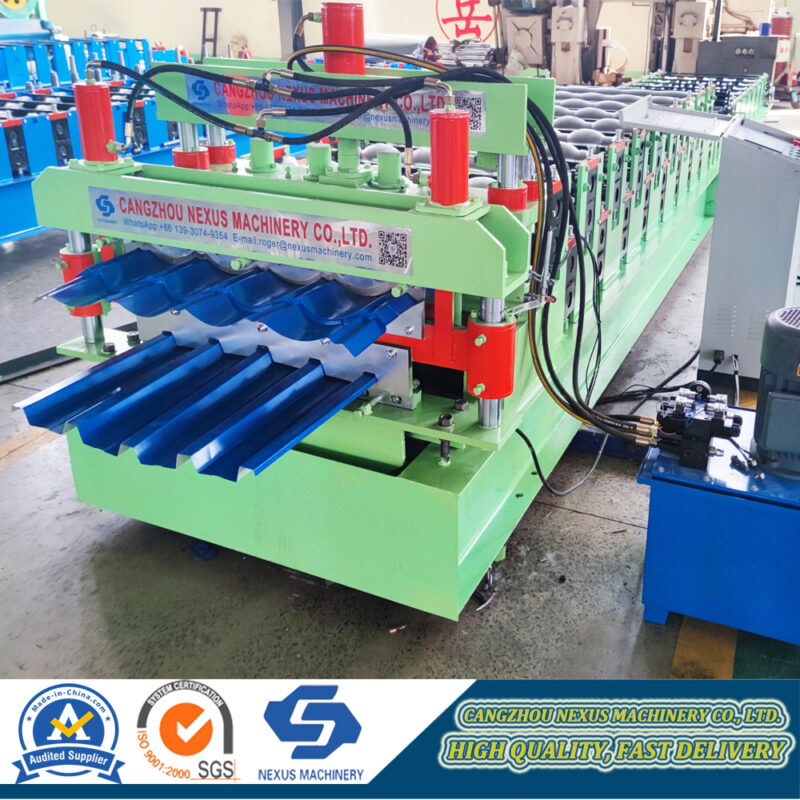

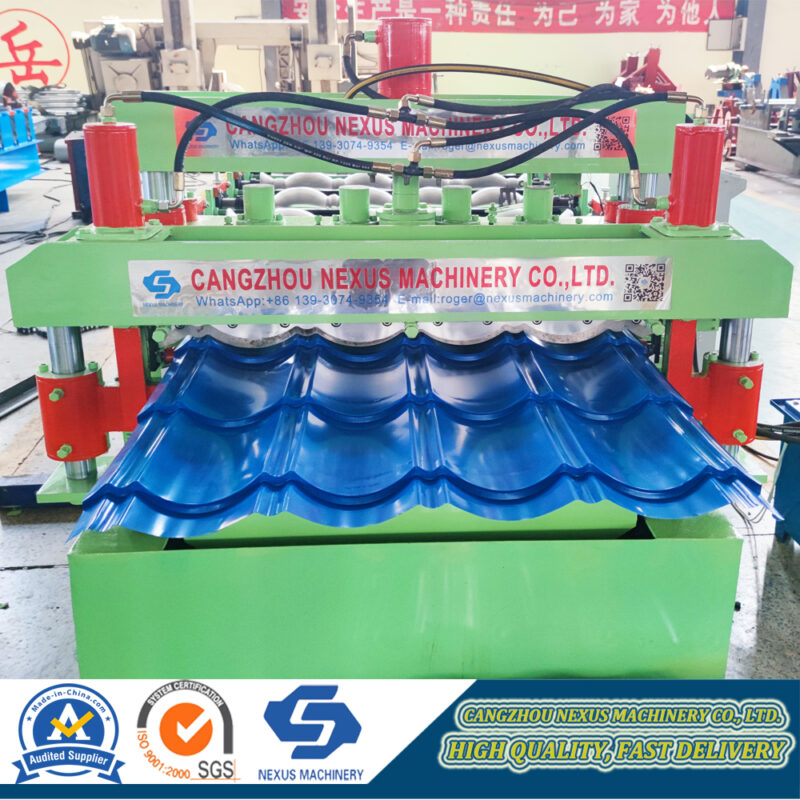

IBR&Q-tile Sheet Roll Forming Machine is a standard roll forming machine to make IBR roofing sheet and Q-Tile Sheet , it is designed to make IBR roof sheet with 686mm chromadek sheet with 925mm coil width and 828mm tile sheet with 1000mm coil width , which is very popular in South Africa market, includes Zimbabwe, Zambia, Kenya, Nambia, Botswana, Ghana ect countries. The main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.70mm. Work speed can reach 15m/min.
Main Parameter:
| Forming steps | 18 stations for IBR sheet and 9 stations for Q-tile |
| Shaft diameter | 72mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
