Product Details

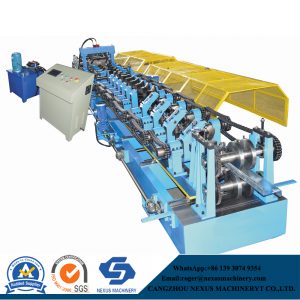

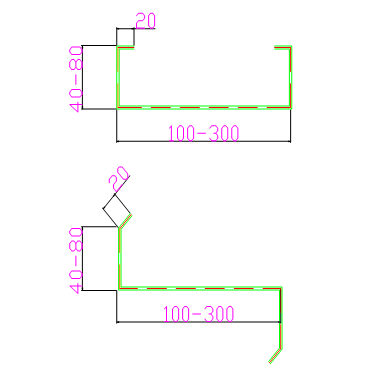

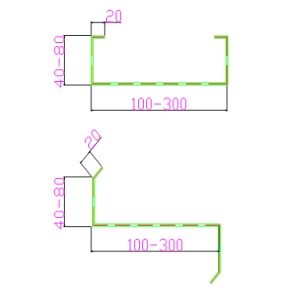

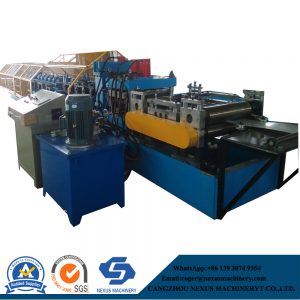

To save cost,space and artificial for customer, our factory develop fully automatic Interchange C Z purlin roll forming machine. The machine will produce C shape and Z shape in one machine, all the punching hole and cutting length will be set in computer. With our machine, the work efficiency is 8--15m/min.
| Name | Parameters |
| Number of forming stations | 18 groups |
| Roller material | Gcr15 steel and quench treatment hardness 55-58, chrome coated 0.05mm |
| Shaft material | Bearing steel |
| Transport | Double row chain by 40mm |
| Totally motor Power | 24.5Kw |
| Working speed | 10m--15m/min(Exclude cutting time) |
| Supported material thickness | 1.2-3mm |
