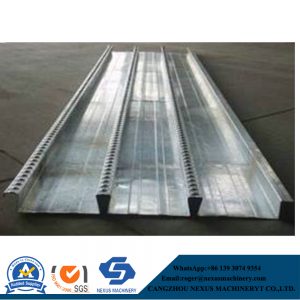

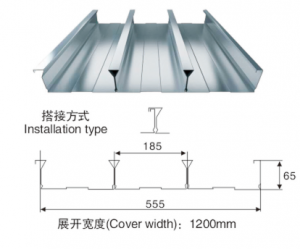

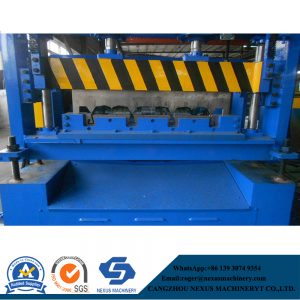

To satisfied with customer’s requirement, the closed type floor Decking Roll Forming Machine will make a new tape of floor deck panel, it is connected with clip lockup. The machine will made up with steel frame, and double layer chain as the transmission system, the machine will be more strength and efficient.

Thickness of Material: 0.8mm—1.3mm
Roller Stations: 26-35 stations
Diameter of Shaft: 76mm
Material of Shaft: 45# steel.
Material of roller: 45#steel with electroplating treatment after quenching treatment.
Forming speed: 8-12m/min
Main Power: 2x11KW.
Overall Dimensions: 13500mmx1500mmx1300mm
Weight of the machine: Appro.12 Tons
Hydraulic Power: 7.5KW
Material of Cutting Blades: Cr12MoV.

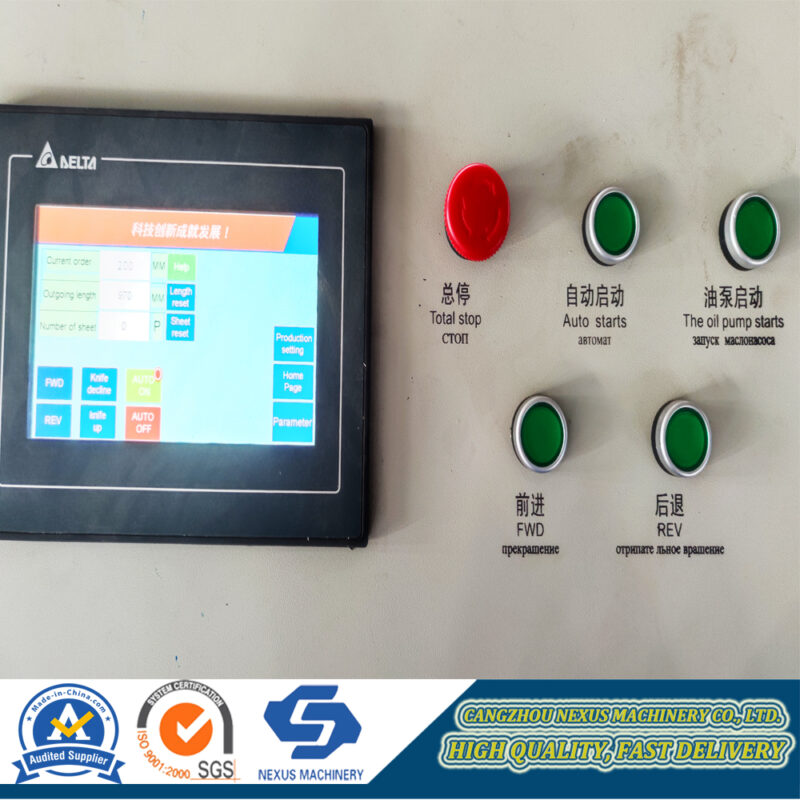

PLC Control Box:700mmx1000mmx300mm
Pressure of Hydraulic Station: ≧16Ma
