Cangzhou Nexus Machinery Co.,Ltd

Column Purlin Roll Forming Machine

Certification: CE,SGS
Loading Port: Tianjin,China
Delivery Time: 40-60 days
Payment Terms: T/T, L/C
Warranty: 1 Year after Shipment
After-Sales Service: Engineer is available to overseas
Product Details

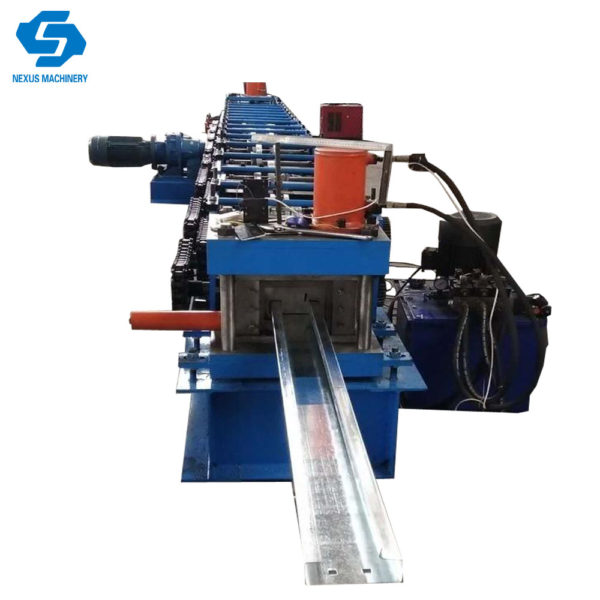

Column Roll Forming Machine is a kind of roll forming machine to make main frame of quick assemble house or container house, it is designed to make column purlins, the main material is galvanized steel. Thickness range from 2.30-3.00mm. Work speed can reach 10m/min.

Main Parameter:

Forming steps 16 stations
Shaft diameter 95mm
Design type Middle plate welded
Machine frame 400# H steel welded
roller material Gcr15 steel
shaft material 45# steel
Work speed 10m/min
Transport By 1.5 inch single chains
Power of main machine 18 kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
