Roof sheet roll forming machine

Roofing Roll Forming Machine for Classic Rib and Diamond Rib

Certification: CE,SGS
Loading Port: Tianjin,China
Delivery Time: 25-40 days
Payment Terms: T/T, L/C
Warranty: 1 Year after Shipment
After-Sales Service: Engineer is available to overseas
Product Details

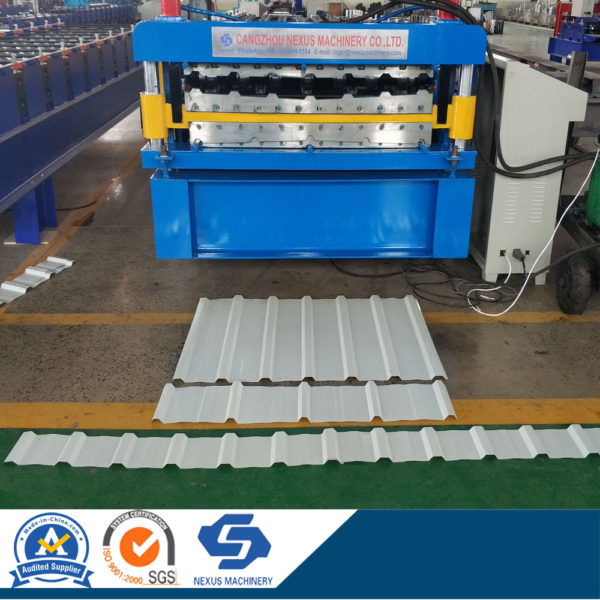

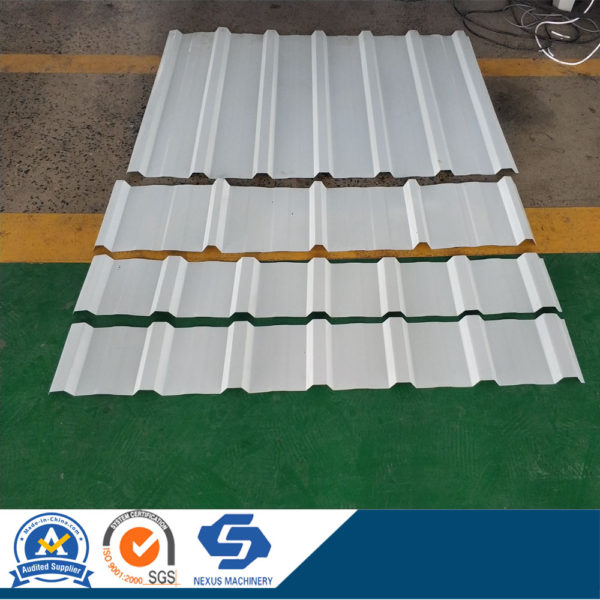

Classic Rib and Diamond Rib Roofing Roll Forming Machine is a double layer roll forming machine to make two different roofing sheets, it is designed to make roof sheets with 1250mm coil width, the main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.30-0.70mm. Work speed can reach 15m/min.

Main Parameter:

Forming steps 14 stations and 16 stations
Shaft diameter 80mm
Design type Middle plate welded
Machine frame 350# H steel welded
roller material 45# steel, surface hard chromium plating.
shaft material 45# steel
Work speed 15m/min
Transport By 1 inch single chains
Power of main machine 5.5 kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
